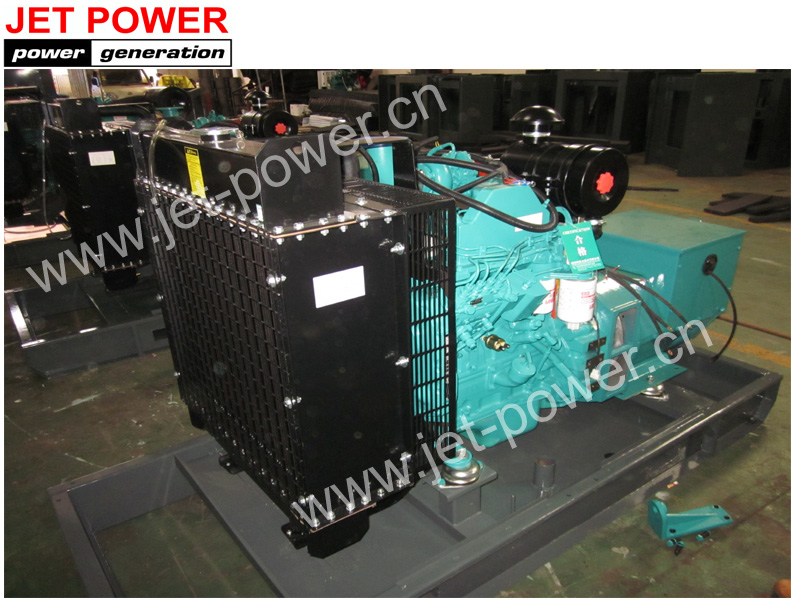

portable diesel generator/open diesel generating units

FOB Reference Price:Get Latest Price
US $500-1,000 / Sets | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
generating units
Model Number:
generating units
Output Type:
AC Three Phase
Speed:
1500RPM
Frequency:
50HZ
Rated Power:
6.5kw-1600kw
Rated Voltage:
400V
Rated Current:
10-2300A
SupplyAbility
SupplyAbility:
2000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
STANDARD EXPORT PACKNG
Port
FUZHOU
Lead Time :
25-30 DAYS

Specifications

The novel design for gensets
Famous diesel engine
Output:6.5kw-1600kw
Reliability quality and performance
Warranty on global

Diesel generator set   Silent / Soundproof type – Open type

Safety – Stability – Economy - Sufficient power

1. Our cooperate with famous diesel engine – Cummins, Deutz, Perkins, Weichai, MTU

2. Brushless alternator -- Stamford, Leroy Somer, Marathon, JET.

3. Solid steel outer skin – 2MM to 4MM steel

4. High density sound-absorbing material -- sound insulation, fireproofing

5. New design of turn-back type for air inflow & air outlet which can reduce the noise and advance engine efficiency.

6. Beautiful & practicably design, Bottom hole for fork, Water outlet & oil outlet

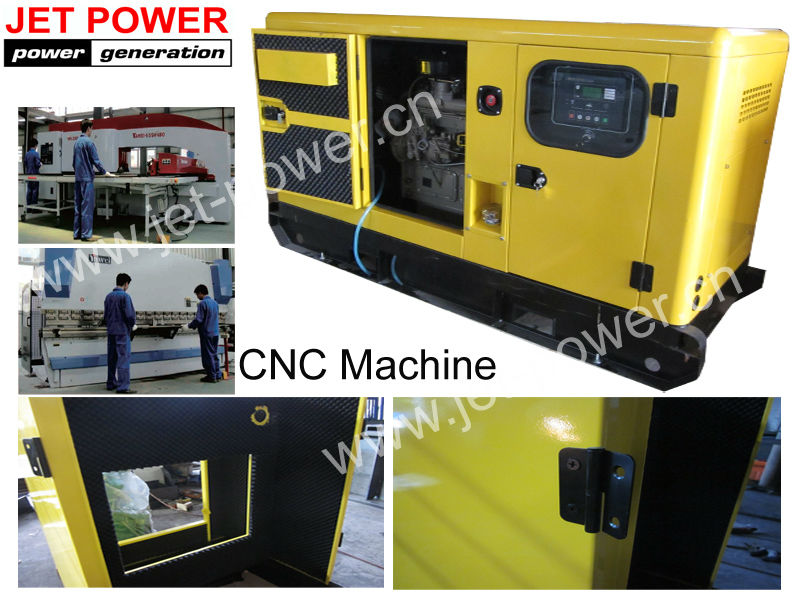

7. Double open door on both sides of the gensets. Spacious doors can check for every part of the engine and alternator.

Diesel generator set   Silent / Soundproof type – Open type

Our gensets compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4

standards

Prime output power: 8kw-1600 kw (10kva-1600kva)

Rated voltage: 120V/240V, 220/380V, 230V/400V, 254V/440V etc.

Phase/connecting: 3 phase, 4wire.

Rated frequency: 50Hz@1500rpm, 60Hz@1800rpm

Alternator excited type: Brushless, self excited or PMG

Insulation: Class H

Protection: IP21~IP23

Voltage regulation: AVR automatic control

Altitude above sea level: ≤1000 meters

Ambient air temperature: ≤40°C

Relative air humidity: ≤ 90%

Technical Data



400V / 50Hz / 1500RPM

Diesel Engine

Silent type Dimension  (L*W*H)(mm*mm*mm)

Model

Standby

Prime

Model

Brand

(KVA/KW)

(KVA/KW)

P-24

24

22

1003G



LOVOL/UK

1710*880*1100

P-37

37

34

1003TG

1710*880*1150

P-53

53

48

1004TG

2200*980*1250

P-55

55

60

1004TG

2200*980*1250

P-75

75

68

1006TG1A

2480*1060*1380

P-88

88

80

1006TG2A

2480*1060*1380

P-91

91

100

1006TAG1A

2560*1140*1530

P-112

112

100

1006TAG

2560*1140*1530

Controller system

1. PLC-800 model Standard control panel, including digital genset control model:HGM170, voltmeter, frequency meter, ampere meter, water temperature gauge, oil temperature gauge, oil pressure gauge, emergency button, preheating button, battery voltage gauge, running calculagraph, fuel level meter, circuit breaker

2. PLC-8000 (AMF) model Standard control panel, including digital LED genset control model:HGM6120, key switch, fuel level meter, Power indicator lamp, circuit breaker

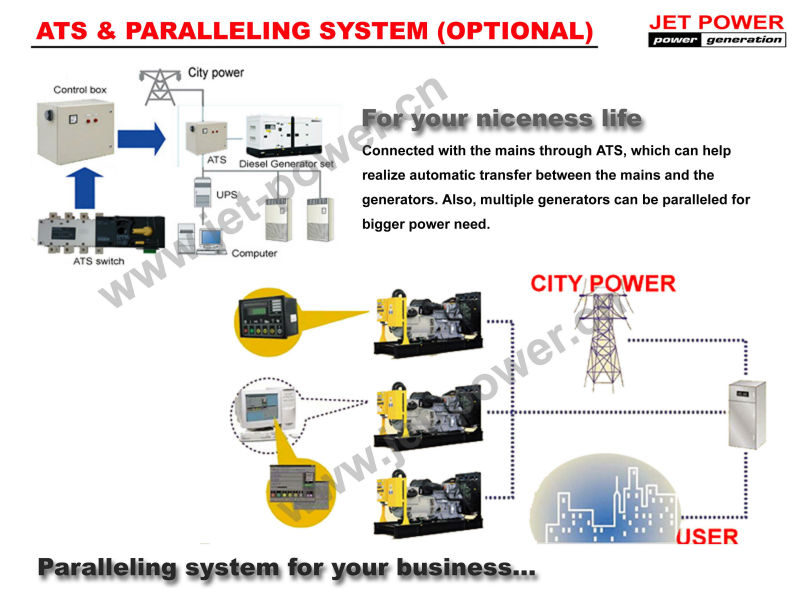

Optional: Automatic transfer switch (ATS)

       Automatic parallel operation system

Accessories

Standard accessories: Standard 40 radiator mounted on skid. Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wire, Standard tool kit, operation manual and document



Manufacturing Standard



GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34



Warranty policy



JET product has guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, our provides cost spare parts maintenance of alternator.



FUZHOU JET ELECTRIC MACHINERY CO., LTD
