F2L912 Deutz air-cooled engine silent diesel generator 15kva with ATS

FOB Reference Price:Get Latest Price
US $1,800-6,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
JET POWER
Model Number:
diesel generator set
Output Type:
AC Single Phase
Speed:
1500RPM / 1800RPM optional
Frequency:
50HZ/60HZ optional
Rated Power:
9kw/9kva
Rated Voltage:
220/380V
Rated Current:
20A - 200A
Genset Type:
Silent(super Silent)or Open Generator Diesel
Alternator Brand:
Stamford Copy Alternator
Diesel Engine:
Chinese Weifang
Generator Color:
Yellow,Red Green Blue etc
Generator Certificate:
CE ISO9001 EPA
Generator Controller:
Smartgen/Deepsea
Generator Warranty:
12 Months/1000 Hours
Generator type:
Silent.Open.Trailer Generator
Fuel tank capacity:
8 hours running fuel tank capacity
H insulation class:
Class H
Packaging & Delivery
Packaging Details
diesel generator packing : optional wooden case, plywood case
Port
Fuzhou port
Lead Time :
Shipped in 25 days after payment
Product Description

Product Application


F2L912 Deutz air-cooled engine silent diesel generator 15kva with ATS

1. Our cooperate with famous diesel engine – USA brand,Deutz, Lovol/UK brand, UK-Lister Petter, Weichai.
2. Brushless alternator -- Stamford, Leroy Somer, Marathon, JET.
3. High-quality steel are thickness -- 2MM to 4MM
4. High density sound-absorbing material -- sound insulation, fireproofing
5. New design of turn-back type for air inflow & air outlet which can reduce the noise and advance engine efficiency.

Main standards
GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard
Prime output power
from 5KVA to 2500KVA
Rated voltage
120V/240V, 220/380V, 230V/400V, 254V/440V etc. other voltage is optional
Generator Phase and connecting
3 phase, 4wire
Rated frequency
50Hz@1500rpm or 60Hz@1800rpm
Alternator excited type
Brushless, self excited or PMG optional
Alternator Insulation
Class H
Alternator Protection
IP23
Voltage regulation
AVR automatic control 1%
Altitude above sea level
≤1000 meters
Ambient air temperature
≤40°C
Relative air humidity
≤ 90%

Main Features


F2L912 Deutz air-cooled engine silent diesel generator 15kva with ATS

1.Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance
2.Double open door on both sides of the gensets. Spacious doors can check for every part of the engine and alternator.

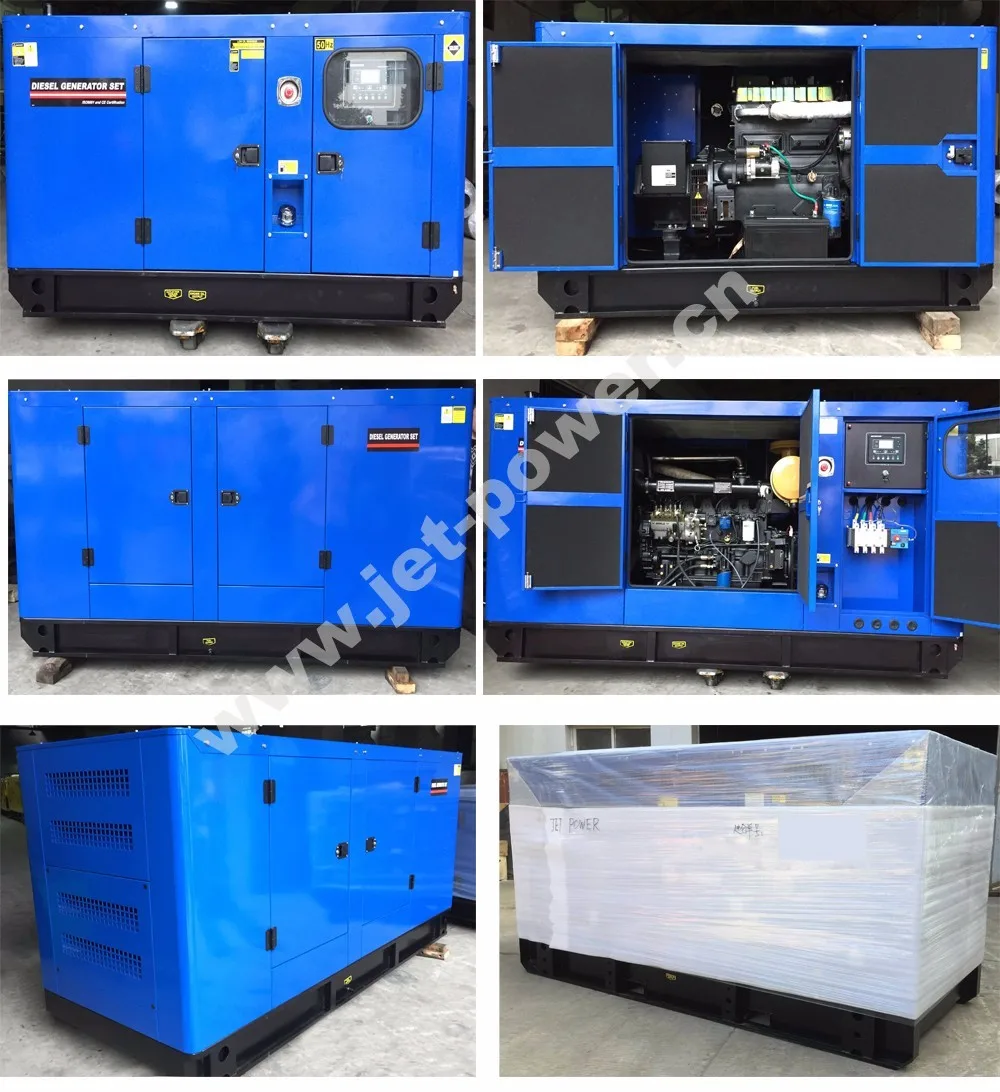

Detailed Images

Canopy


*All canopy designed with modular principles
*All metal canopy parts painted by electrostatic polyester power paint
*Soundproof design ensure that the noise level be controlled in small scope
*Convenient to lift and move
*Easy to maintenance and operate
*Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator.

Base Frame


*Base frame including position for forklift and crane
*Integral fuel tank
*Generator equipped with 8-24 hours fuel tank with fuel indicator, continuely working.
*Fuel tank easy to maintain and clean
*Anti-vibration pads are flexed between engine and alternator.

Control Syatem


*Control, monitor and protect the Generator Set including:
*High water temperature
*Low oil pressure
*Over and under speed
*Over current
*Under/Over generator voltage
*Start and stop failure
*Low and high battery voltage
*Charge fail
*Emergency stop

Packing & Delivery
Packaging
Size
Depend on the power of diesel generator
Weight
Depend on the power of diesel generator


Packaging and Delivery Details

Packing details:the normal package iswooden case ,plywood case, Plastic film package, according to customers special request.

Delivery time:25 days from receiving the payment
