Soundproof 3 phase genset 150kva diesel generators 120kw generator

FOB Reference Price:Get Latest Price
US $1,800-20,000 / Set | 1 Set/Sets diesel generator (Min. Order)
Supply Ability:
300 Set/Sets per Month diesel generator
Port:
Fuzhou port
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
optional diesel generator
Model Number:
optional diesel generator
Output Type:
AC Three Phase
Speed:
1500/1800rpm diesel generator
Frequency:
50HZ/60HZ diesel generator
Rated Power:
2.8KVA to 2500KVA diesel generator
Rated Voltage:
as customer requirement diesel generator
Rated Current:
diesel generator
diesel generator Engine Brand:
Perkins/ Cummins/Yanmar/chinese etc..
diesel generator price:
Open / Silent / Trailer
diesel generator Alternator:
Stamford / Leroy somer etc
diesel generator color:
as customer requirement
diesel generatorwarranty:
1 year
diesel generator Certificate:
CE/ISO/EPA etc
diesel generator Controller:
smartgen/Deepsea/comAp/monicon
diesel generator phase:
single/three phase
diesel generator optional:
ATS...
Alternator warranty:
2 years
Packaging & Delivery
Packaging Details
diesel generator Package by Plywood
Delivery Time
Shipped in 30 days after payment
Video Description
Product Description

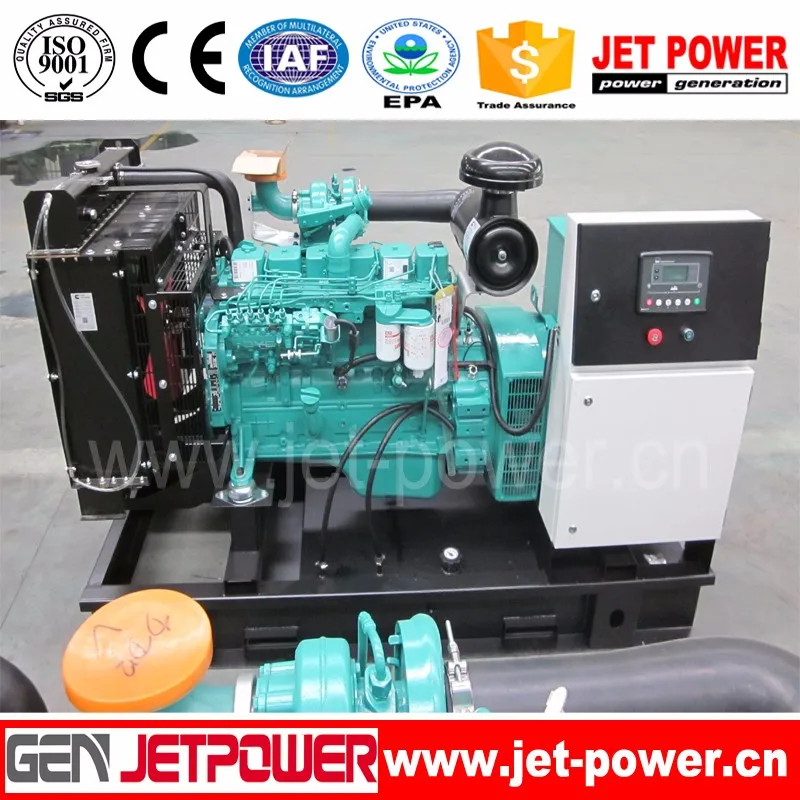

diesel generator set

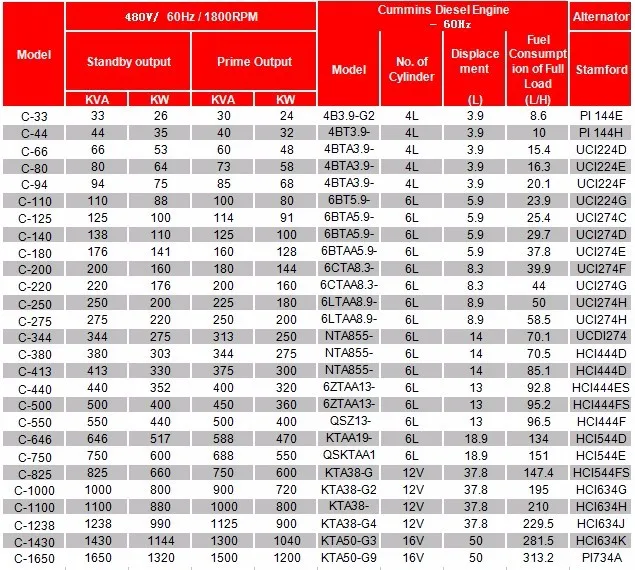

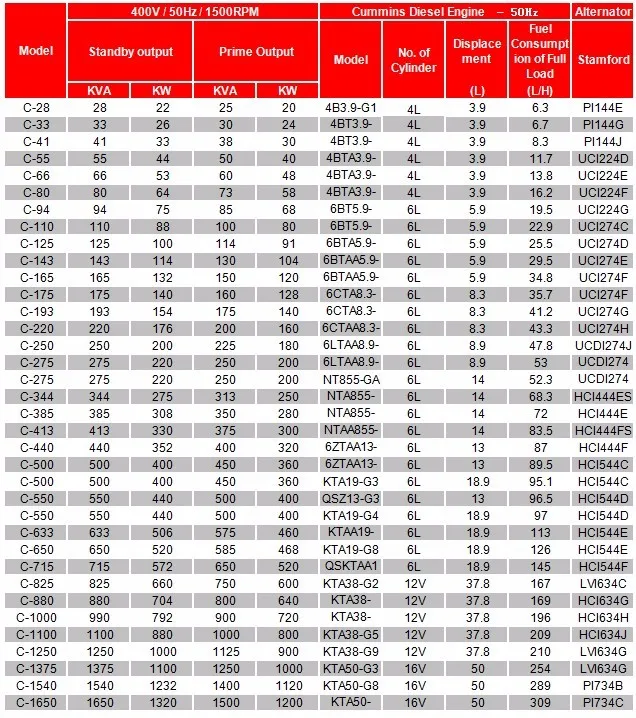

Model Specification
Generator details

Engine

Powered by Cummins, Perkins  Deutz , LovoL , Lister Petter, Doosan, Shangchai, Yarman, Foton-Isuzu, Xichai, SDEC, Weichai, MTU, Ricardo, Jichai.



alternstor

Brand: Stamford, Leroy Somer, Marathon, JET, Mecc alte



main standards
GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard
Prime output power
2.8 KVA to 2500KVA
Generator Phase and connecting
 3 phase, 4wire
Rated frequency
50Hz/1500rpm or 60Hz/1800rpm
Alternator excited type
Brushless, self excited or PMG optional
Alternator Insulation
Class H
Alternator Protection
IP21 ~ IP23
Voltage regulation
AVR automatic control 1%
Altitude above sea level
≤1000 meters
Ambient air temperature
≤40°C
Relative air humidity
≤ 90%

Spare parts

control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp ,
1. PLC-1780 model Standard control panel, including digital genset control model:HGM1780, voltmeter, frequency meter, ampere meter, water temperature gauge, oil temperature gauge, oil pressure gauge, emergency button, preheating button, battery voltage gauge, running calculagraph, fuel level meter, circuit breaker

2. PLC-6020, PLC-6120U, PLC-7320 (AMF) model Standard control panel, including digital LED genset control model: HGM6120U, DSE7320, DSE6020
3. Automatic transfer switch (ATS) and Automatic parallel operation system

Why choose us
diesel generator advantage

1. High-quality steel are thickness canopy -- 2MM to 6MM
2. high density sound-absorbing material -- sound insulation, fireproofing
3.12V/ 24V DC battery with charger, battery connects wire
4. 10-12 hours fuel tank with fuel indicator, long time for working.
5.High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker
6.New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
7.Beautiful & practicably design, Bottom hole for forklift, water outlet & oil outlet for easy maintenance
8. Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator.
9.All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type ,container type

Certifications
Our Service

one year or 1000 hours reach first from exfactory date.

1. During the guarantee-
ur will provide the free easydamageable spare parts of alternator caused by our quality of production or raw material.
2. After expiration-
our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.

Our Company

FUZHOU JET ELECTRIC MACHINERY CO., LTD is a leadind manufacturer focus on Gasonline Generators, Disel Generators, Pump, Motor,Garden Machines. The factory is located in Fuan City Fujian provice, which is a well-konw electrical and machine city in China. For more convenient and efficient business, we set up company in HONGKONG and FUZHOU CITY.
